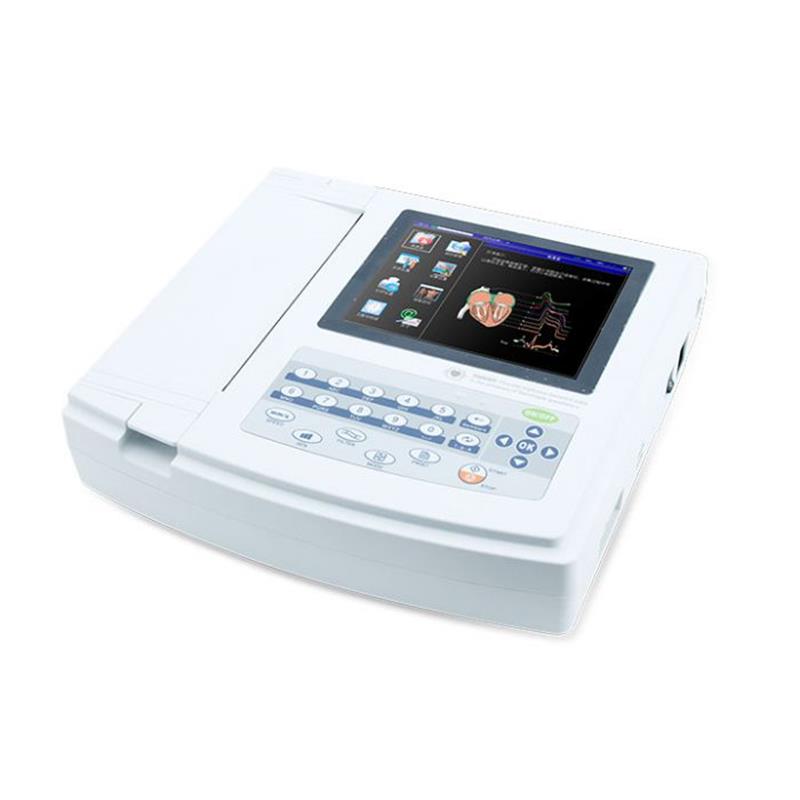

Contec ECG1200G 12 Channel ECG

Price : 48,000
Price Includes Shipping

  • 8 Inch touch screen.
  • Battery backup of 8-10hrs.
  • Sync collection for 12-lead ECG with digital signal processing to give high-quality ECG waveform via power frequency filter, baseline filter and EMG filter.
  • Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.

  • Leads - 12 leads
  • Input way - Floating and defibrillation protection
  • Lead -  Standard 12 leads(model:BIP0057)
  • Patient leak current - <10µA
  • Input impedance - ≥50MΩ
  • Frequency response -  0.05Hz~150Hz(-3dB)
  • Time constant - Time constant>3.2s
  • CMRR - >60dB, >100dB( Adding filter)
  • EMG interference filter - 35Hz(-3dB)
  • Recording way - Thermal printing system
  • Specification of recording paper -  210mm(W)*20m(L) high-speed thermal paper
  • Paper speed - Auto record: 25mm/s, 50mm/s, error:±5%
  • Rhythm record: 25mm/s, 50mm/s, error:±5%
  • Manual record:5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error:±5%
  • Sensitivity selections - 2.5,5,10,20,40mm/mV, error:±5%. Standard sensitivity is 10mm/mV±0.2mm/mV.
  • Auto record - Record setup according to auto-record format and mode, automatically changing leads, measuring and analyzing.
  • Rhythm record - Record setup according to rhythm record format and mode, automatically measuring and analyzing.
  • Manual record - Record setup according to manual record format, manually changing leads.
  • Measurement parameters - HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P A*is, QRS A*is, T A*is, R(V5) , S(V1) , R(V5)+S(V1)
  • Product safety type - Class I CF applied part; there is defibrillation and pacing protection circuit in it.
  • Enduring polarization voltage -  ±300mV
  • Noise level - ≤15µVp-p
  • Fuse specification - 2 pcs φ5*20mm AC time lag; T1.6A/250V(Power supply 220V)
  • Size - 340mm(L)*320mm(W)*85mm(H)
  • Net Weight - 3.2Kg
