Akas INFUMAX 5005 Infusion Pump
product thumbnail

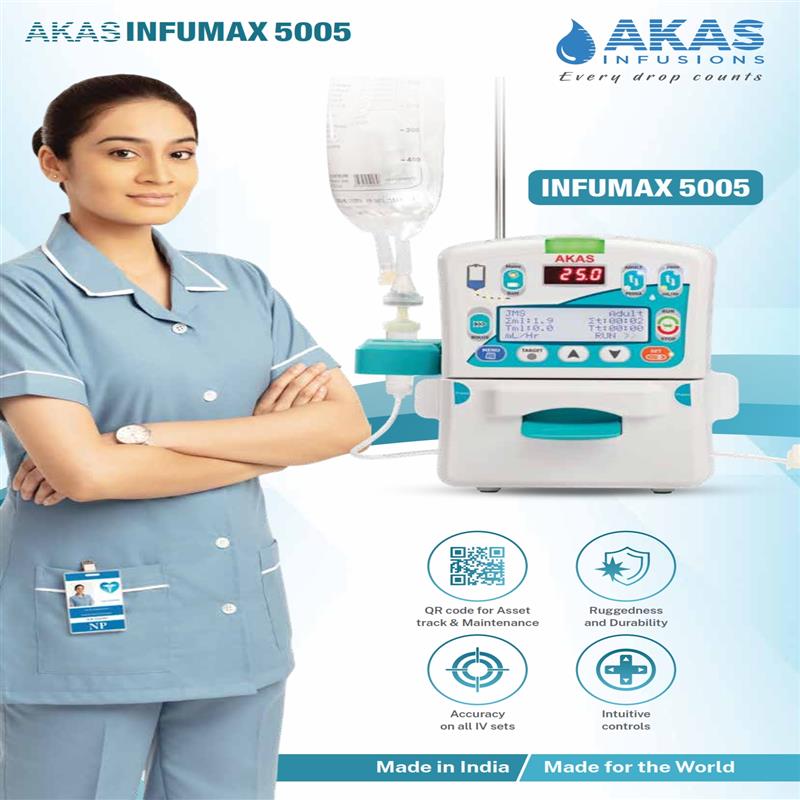

Akas INFUMAX 5005 Infusion Pump

SKU: PROD29
Price : ₹24,000
Price Includes Shipping
( 0 reviews )

Infumax 5005 is a volumetric infusion pump with linear peristaltic pumping mechanism. It is suitable for adult and pediatric infusions. This model has a maximum infusion rate of 1200ml/hr which is commonly used circumstances of burns or in case of low blood pressure in emergency.

Add To Cart
  • Product Type - Volumetric Infusion Pump
  • Power Supply -  AC 220V to 240V 50Hz, (Optional DC 18 V)
  • Battery Backup - 5hrs @ 8 drop/min or 25 ml/hr (Auto Power Saving Mode)
  • Power Consumption - 10VA (W)
  • Pumping mechanism - Linear Peristaltic
  • Drop Sensors -  External
  • ‘Air in line’ Detector - Internal
  • Display - LCD with Back light and 7 Segment LED Display
  • Safety features -  Excess / Less Alarm Air in Line Protection Sensor Malfunction Protection
  • IV set ml conversion - Adult IV sets - 12 to 26 drops/ml in steps of 0.5 Micro IV sets - 30 to 85 drops/ml in steps of 1
  • IV set tubing - Accepts all Brands of IV set
  • Drop rate range - 1 to 150 drop/min for Adult * 1 to 100 drop/min for Pedia
  • Volume rate range - 0.5 to 1200 mL/hr for Adult * 0.1 to 300 mL/hr for Pedia
  • Drop resolution - 1 drop/min
  • Flow rate Resolution - ?Adult: 0.5 to 999.9mL/hr in steps of 0.1 Ml/Hr 1000mL/Hr and above in steps of 1mL/Hr | Pedia: 0.1 to 299.9mL/hr in steps of 0.1 Ml/Hr
  • Bolus Function - Auto Bolus, Purge Bolus
  • Bolus Flow rate - Adult: 10 to 1200mL/Hr in steps of 10mL/Hr | Pedia: 10 to 300mL/Hr in steps of 1OmL/Hr
  • Free Flow Protection - Free flow lever lock for protecting accidental excess flow
  • Infused Volume Display -  0.1 to 9999ml
  • Target Volume - 0.1 to 1000ml
  • Bolus Volume - 0.1 to 1000mL(Adjustable)
  • Bolus volume resolution - 0.1 to 99.9mL/Hr in steps of 0.1mL/Hr 100mL/Hr and above in steps of 1mL/hr
  • Elapsed time - 00:01 to 99:59 Hr
  • Keep Vein Open (KVO) - 0.5 to 9.9mL/Hr in steps of O.1mL/Hr
  • Battery charging period - 10 hrs automatic
  • Battery type - 14.4 V(800 mAh) Ni-MH Battery
  • Audio and visual alarm - Target volume, Target time, Excess(High) flow, Less flow, Air in line, Battery low, Battery critical, KVO,
  • Purge Flow -  Flushing of IV tube possible
  • Menu Driven - Self Guided / Help Assisted Interactive Functions, Self Diagnosis of Alarm Causes
  • Dimension - 148mm x 100mm x190mm (L x W x H)
  • Weight - 2.2 kg
  • Certification - CE, ISO 13485:2016
  • Connectivity (Optional) - Wi-Fi enabled for Mobile App monitoring & CMS
  • Accuracy - %5±
  • Operating & Storage Temp - °10-C to °50C
  • Operating & Storage Humidity - 15 to 2±)90)%
  • Operating & Storage Pressure - 50 to 10±)106)kpa
