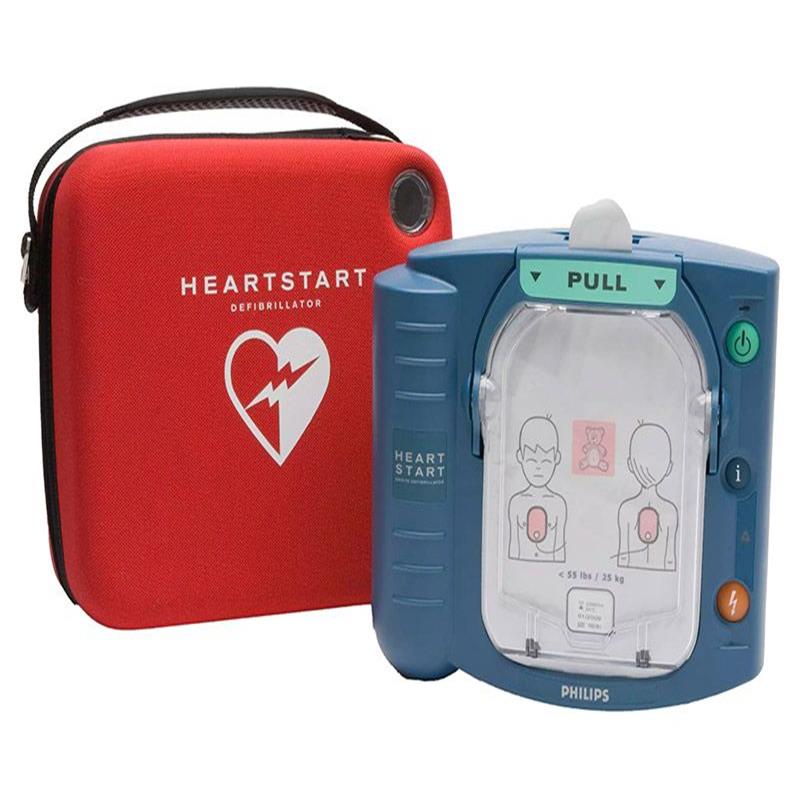

Philips HeartStart 1 (HS1) AED Machine

SKU: PROD65
Price : 95,500
Price Includes Shipping

Designed for the ordinary person in the extraordinary moment, Philips HeartStart HS1 AED is ready to act and virtually ready to go. It allows anyone with little or no training to treat the most common cause of suspected sudden cardiac arrest (SCA) by delivering a shock quickly and effectively, wherever SCA happens. The HS1 AED provides practically real-time guidance through step-by-step voice commands from pad placement to performing CPR.



Battery:-
  • Type - 9 volt DC, 4.2 Ah, composed of disposable long-life lithium manganese dioxide primary cells
  • Capacity - Minimum 200 shocks or 4 hours of operating time (EN60601-2-4:2003)
  • Install-by Date : Battery is labeled with an install-by date of at least five years from date of manufacture
  • Standby Life - Four years typical when battery is installed by the install-by date. (Will power the AED in standby state within the specified   Standby Temperature range, assuming one battery insertion test and no defibrillation uses)
Product Specifications :-
  • Kit Contents- Defibrillator, battery (one, pre-installed), SMART Pads (one set, pre-installed), set-up/maintenance guide with expiration date tags, owner's manual, quick reference guide
  • Waveform - SMART Truncated exponential biphasic. Waveform parameters adjusted as a function of patient impedance
  • Defibrillation peak current - Adult :-  32 A (150 J nominal) into a 50 ohm load
  • Defibrillation peak current - Pediatric :- 19 A (50 J nominal) into a 50 ohm load (using optional infant/child SMART Pads Cartridge)
  • Quick Shock - Able to deliver a shock after the end of a CPR interval, typically in eight seconds
  • Shock-to-Shock Cycle Time - Typically less than 20 seconds between shocks in a series
  • Voice Instructions -  Detailed voice messages guide responder through use of the defibrillator
  • CPR Guidance - Instructions for adult and infant/child CPR available at user selection
  • Shock Delivery - Via adhesive pads placed on patient's bare skin as illustrated on pads
  • Controls - Green SMART Pads cartridge handle, green On/Off button, blue i-button, orange Shock button
  • Indicators - Ready light, blue i-button, caution light
SMART Pads :-
  • Energy delivered -  Adult: nominal 150 joules into a 50 ohm load; Infant/Child: nominal 50 joules into a 50 ohm load
  • How Supplied - Disposable cartridge, containing adhesive defibrillation pads, clicks into defibrillator for an integrated pads solution
  • Active Surface Area - 85 cm² (13.2 in²) each
  • Cable Length - Adult pads: 137 cm (54"); Infant/Child pads: 102 cm (40")
  • Use-by Date :-  Cartridge is labeled with a use-by date of at least two years from date of manufacture
  • Training pads (optional) - Special pads put HeartStart into training mode and disable its energy delivery capability. Training pads feature 8 real-world training scripts. Use with training mat (included) or with adapters on manikins

Automated and User-activated Self-tests :-
  • Daily Automatic Self-tests - Tests internal circuitry, waveform delivery system, pads cartridge, and battery capacity
  • Pads Integrity Test - Specifically tests readiness-for-use of pads (gel moisture)
  • Battery Insertion Test - Upon battery insertion, extensive automatic self-tests and user-interactive tests check device readiness
  • Status Indicator - Blinking green "Ready" light indicates ready for use. Audible "chirp" indicates need for maintenance
Data Recording and Transmission:-
  • Infrared - Wireless transmission of event data to a PC or Palm PDA, using the IrDA protocol
  • Data Stored - First 15 minutes of ECG and the entire incident's events and analysis decisions
Environmental/Physical Requirements:-
  • Sealing - Solid objects per EN60529 class IP2X; Drip-proof per EN60529 class IPX1
  • Operating Temperature : 0 - 50 °C (32 - 122 °F)
  • Standby Temperature : 0 - 43 °C (32 - 109 °F)
  • Operating Altitude - 0 to 4,500 m (0 to 15,000 ft)
  • Operating Humidity  - 0 to 95 % relative humidity (non-condensing)
  • Shock/Drop Abuse Tolerance - Withstands 1 meter drop to any edge, corner, or surface
  • Vibration - Meets EN1789 random and swept sine, road ambulance specification in operating and standby states
  • Standby Humidity  - 0 to 75 % relative humidity (non-condensing)
  • Standby Altitude : > 48 hours from 0 to 8,500 ft and <48 hours from 8,500 to 15,000 ft
  • EMI (Radiated/Immunity) - Meets EN55011 Group 1 Level B Class B and EN61000-4-3
