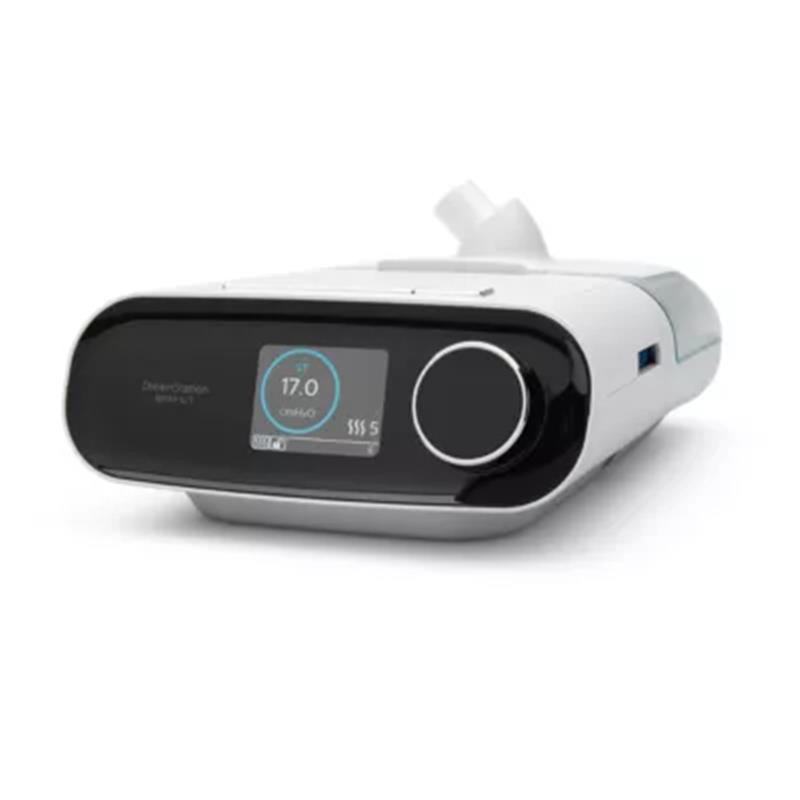

Product Name: Philips Dreamstation AVAPS 30 AAM-AE BiPAP Machine
-
Brand : Philips
-
Model Name/Number : AVAPS 30 AAM-AE
-
Ventilation pressure : 4 to 30 cm H2O (increment is .5 cm H2O)
EPAP: 4 to 25 cm H2O (increment is .5 cm H2O)
CPAP max pressure is 20 cm H2O
-
Modes : CPAP, S, S/T, T, PC, AVAPS -AE
-
Breath per minute : 1 to 30 (increment is 1 breath)
-
Digital Auto-Trak : No settings – fully automated triggering, cycling and leak compensation
-
AVAPS : Target volume: 200 to 1500 ml per breath (increment is 10 ml)
Max. IPAP: 6 cm H2O to 30 cm H2O
Min. IPAP: EPAP plus 2 cm H2O to 30 cm H2O (Minimum Pressure support is 2 cm H2O)
-
Inspiration time : .5 to 3.00 seconds (increment is .1 seconds)
-
Rise time : 1 to 6
-
Ramp time : 5 to 40 minutes (increment is 5 minutes)
-
Flex pressure relief : 0 to 3 (only in S-mode)
-
Humidification : Heated humidification, fixed, adaptive (standard 15mm or 15 mm heated tube)
-
Dimensions : 15.7 x 19.3 x 8.4 cm (w/o humidifier) ;
29.7 x 19.3 x 8.4 cm (w humidifier)
-
Weight : 1.33 kg/2.94 lbs (w/o humd); 1.98 kg/4.37 lbs (w humid); Incl power supply
-
Voltage : 100 – 240 VAC
-
Frequency : 50/60 Hz
-
Amperage : 2.0-1.0 A
