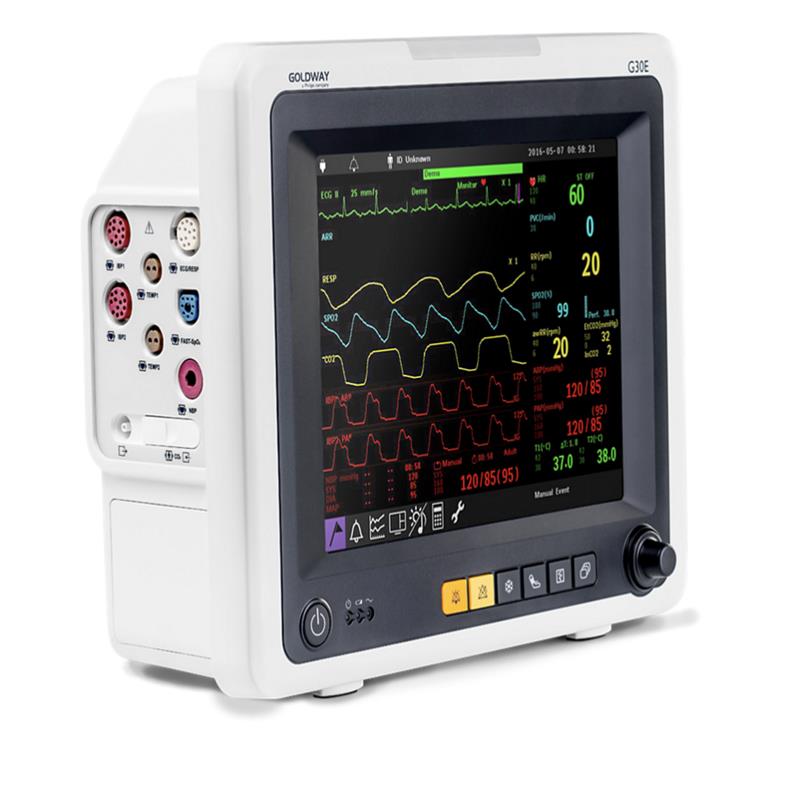

Philips GS30E Patient Monitor
product thumbnail

Philips GS30E Patient Monitor

SKU: PROD47
Price : ₹144,000
Price Includes Shipping
( 0 reviews )

To accommodate different clinical environments, the G30E delivers real-time data about cardiac and respiratory conditions. In addition to basic monitoring parameters, such as Philips ST/AR 3- and 5-lead ECG/ RESP, NBP, 2 temperatures, and Philips SpO2/PR, ST and arrhythmia monitoring, it also provides 2-channel invasive blood pressure and microstream etCO2 monitoring as options.


Add To Cart

ECG

  • Lead type - 3-lead or 5-lead selectable
  • Lead selection, 3-lead -  I, II, III
  • Lead selection, 5-lead  - I, II, III, aVR, aVL, aVF, V
  • HR measurement - Adult / pediatric: 15 bpm - 300 bpm Neonatal: 15 bpm - 300 bpm Step: 1 bpm
  • HR accuracy -  ±5 bpm or ±1 %, whichever is greater
  • Arrhythmia - 21 calls
  • ST measurement range : -2.5 mV - +2.5 mV
  • Waveform speed  - 6.25 mm/s,12.5 mm/s, 25 mm/s, 50 mm/s
  • Gain selection -  x 1/4, x 1/2, x 1, x 2, x 4, Auto
  • Pacemaker detection - Yes
  • Protection - Against electrosurgical interference and defibrillation
Non-invasive blood pressure (NIBP)
  • Method - Automatic oscillometric
  • Parameters - SYS/DIA/MAP/Pulse Rate
  • Operating mode - Manual/Auto/STAT
  • Auto measure intervals - 3, 5, 10, 15, 30, 60, 90, 120, 240, 480 minutes
  • Units - mmHg/kPa
  • Cuff pressure range, adult / pediatric : 0 - 300 mmHg ( 0 kPa - 40.0 kPa)
  • Cuff pressure range, neonate : 0 - 150 mmHg ( 0 kPa - 20.0 kPa)
  • Systolic measurement range, adult/ pediatric : 30 mmHg - 254 mmHg (4.0 kPa - 33.9 kPa)
  • Systolic measurement range, neonate : 30 mmHg - 135 mmHg (4.0 kPa - 18.0 kPa)
  • Diastolic measurement range, adult / pediatric : 10 mmHg - 220 mmHg (1.3 kPa - 29.3 kPa)
  • Diastolic measurement range, neonate : 10 mmHg - 110 mmHg (1.3 kPa - 14.7 kPa)
  • MAP measurement range, adult / pediatric : 20 mmHg – 235 mmHg (2.7 kPa – 31.3 kPa)
  • MAP measurement range, neonate : 20 mmHg – 125mmHg (2.7 kPa – 16.7kPa)
  • Accuracy, maximum standard deviation : 8 mmHg (1.1 kPa)
  • Accuracy, mean error : ±5 mmHg (±0.7 kPa)
  • Pulse rate range : 40 bpm – 240 bpm
  • Pulse rate accuracy : ±5bpm or ±5%, whichever is greater
  • SpO2 (Philips SpO2 technology)
  • Measurement range : 0 - 100 %
    Accuracy : 70 % - 100 %, depends on sensor; 0 - 69 %, unspecified
    Waveform speed : 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
    Pulse rate range : 30 bpm - 300 bpm
    Pulse rate accuracy : ±2 bpm or ±2%, whichever is greater
    Perfusion index - Yes

Respiration:

  • Measurement method : Thoracic impedance
  • Measurement range : 0 rpm - 150 rpm
  • Accuracy : 0rpm – 120rpm: ±1 rpm; 121rpm – 150rpm: ±2 rpm
  • Waveform speed : 6.25 mm/s,12.5 mm/s, 25 mm/s, 50 mm/s Accuracy undefined
  • Gain selection : x 1/2, x 1, x 2
  • Apnea alarm : Yes, 10 - 60 s
  • Work mode : Auto or manual (threshold)
  • RESP lead : RA-LL

Temperature (TEMP, 2-channel)

  • Measurement range : 0 - 50? (32? - 122?)
  • Resolution : 0.1? (0.2?)
  • Accuracy : ±0.1? (±0.2?) (without sensor)
  • Units : ? / ?
  • Minimum measuring time - Attachable skin surface probe: <10 minutes Esophageal/rectal probe: < 2 minutes




Optional Parameters: ETCO2, IBP-2 CHANNEL, RECORDER

Display

  • Type - Color TFT LCD, 4:3
  • Size - 10.4+611:631"
  • Resolution - 800 x 600 pixels
  • Channels - Max 11 channels (auto waveform channel height adjustment)
Power supply
  • AC power input : 100 - 240 VAC, 50/60 Hz
  • Battery: Rechargeable Li-Ion battery Maximum 2.5 hour continuous monitoring
Weight and dimensions
  • Net weight :  Approx. 3.5 kg without battery
  • Dimensions (w x d x h) : 316 mm x 265 mm x 131 mm (12.5 in. x 10.5 in. x 5.2 in.)
